CDI adapter wiring and 12V regulator for Honda DAX - ST - CT 6 volts

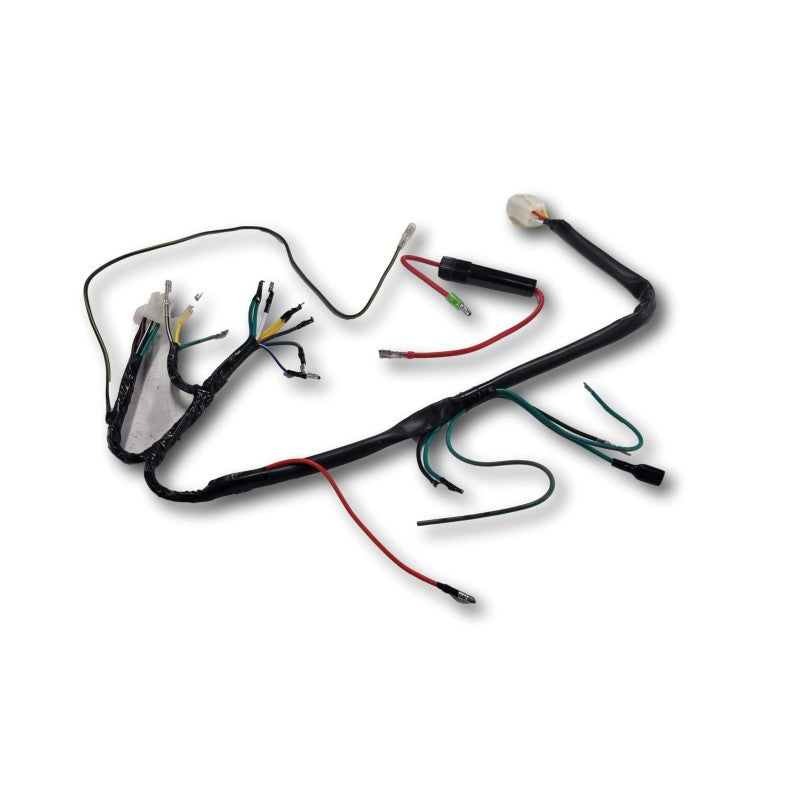

Adapter wiring harness, developed to easily convert an old mini 4-stroke 6 volt breaker type engine into an electronic CDI ignition (or a complete engine with CDI ignition) and a 12 volt voltage regulator.

The wire colors for the engine connection are the same as the Honda 12V CDI. The regulator connector is for a common 12V regulator. The red wire is for 12V charging current. The CDI connector is for a standard CDI. The long black wire is for the CDI ignition coil, and the green wire is the ground connection for the coil. The fuse and separate wires are designed to connect a small 12V battery.
